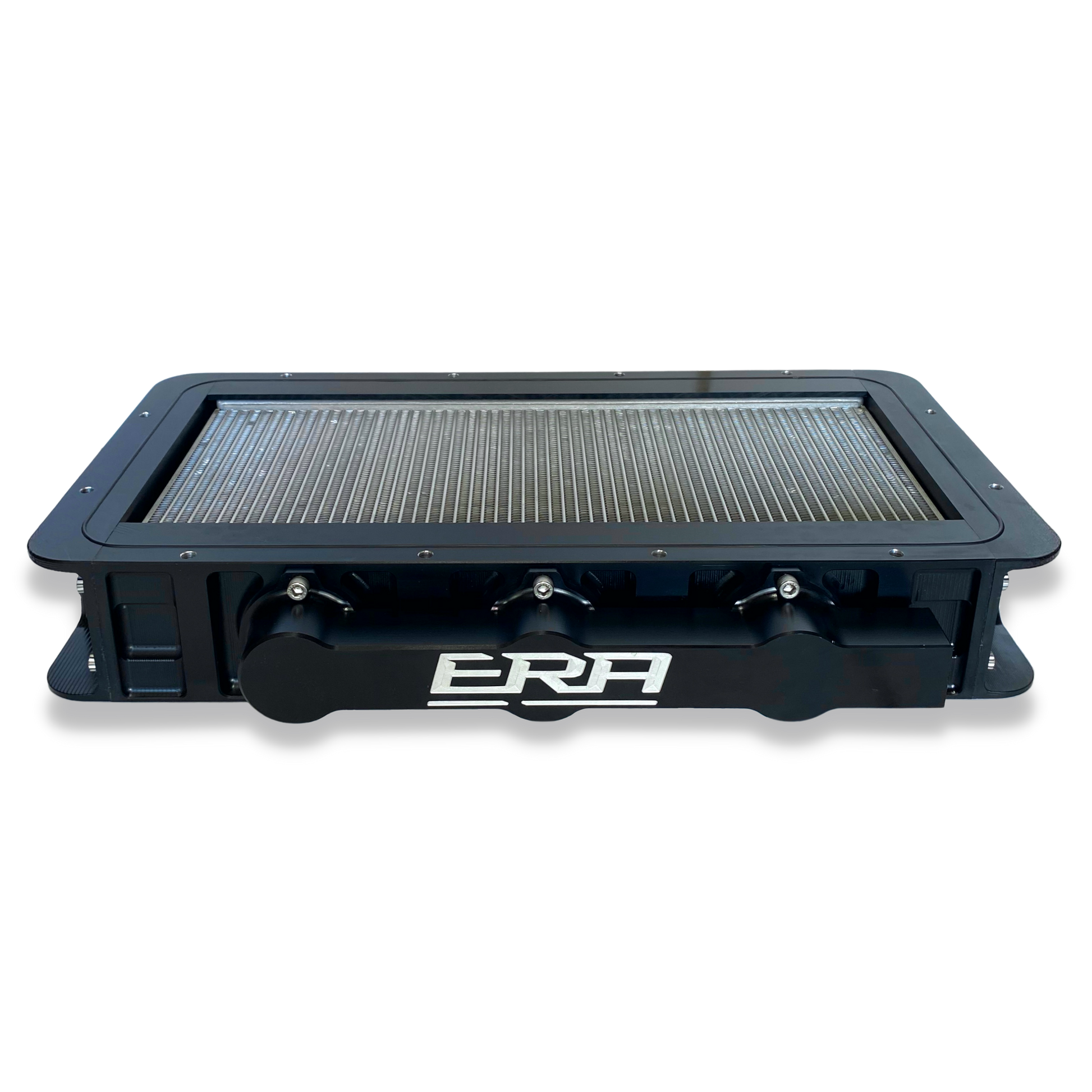

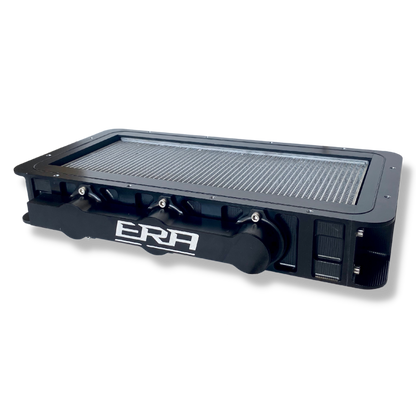

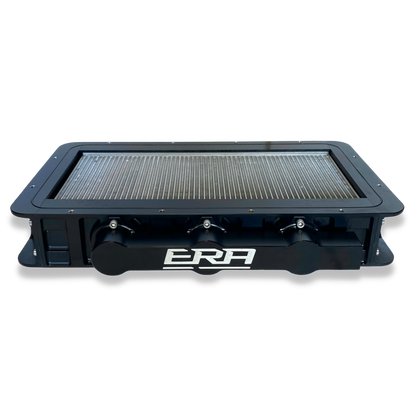

The ERA Water to Air intercooler is the best alternative to your conventional Air to Air intercooler which is bolted between the manifold and top cover of the Holley Hi & Mid-Ram Manifolds.
When it comes to our intercooler, we wanted to provide a product that not only looked good but was also THE most efficient product at pulling heat out of the intake charge. Each component has been carefully and uniquely designed to do exactly that.
Tapped with -12 fittings, the water logs flow chilled water in one side, through the genuine PWR tube and fin core, and out the other side. The end tanks have been designed to flow water via the shortest path across the core. It is then returned to the ice box or front mount heat exchanger.
As far as HP rating goes, we have made well over 2000hp with no issues whatsoever.
The full floating core sits inside a 6061 billet case which can be purchased as a plain machine finish or anodised satin black, giving it a slick and clean look.
Dimensions & Specifications
Overall: 476mm x 204mm x 75mm
PWR Core: 394mm x 166mm x 55mm
Inlet / Outlet Fitting : -12 ORB / Thread : 1 1/16 UN
Please Note: If this item is out of stock, please get in contact with us to pre-order a unit.
