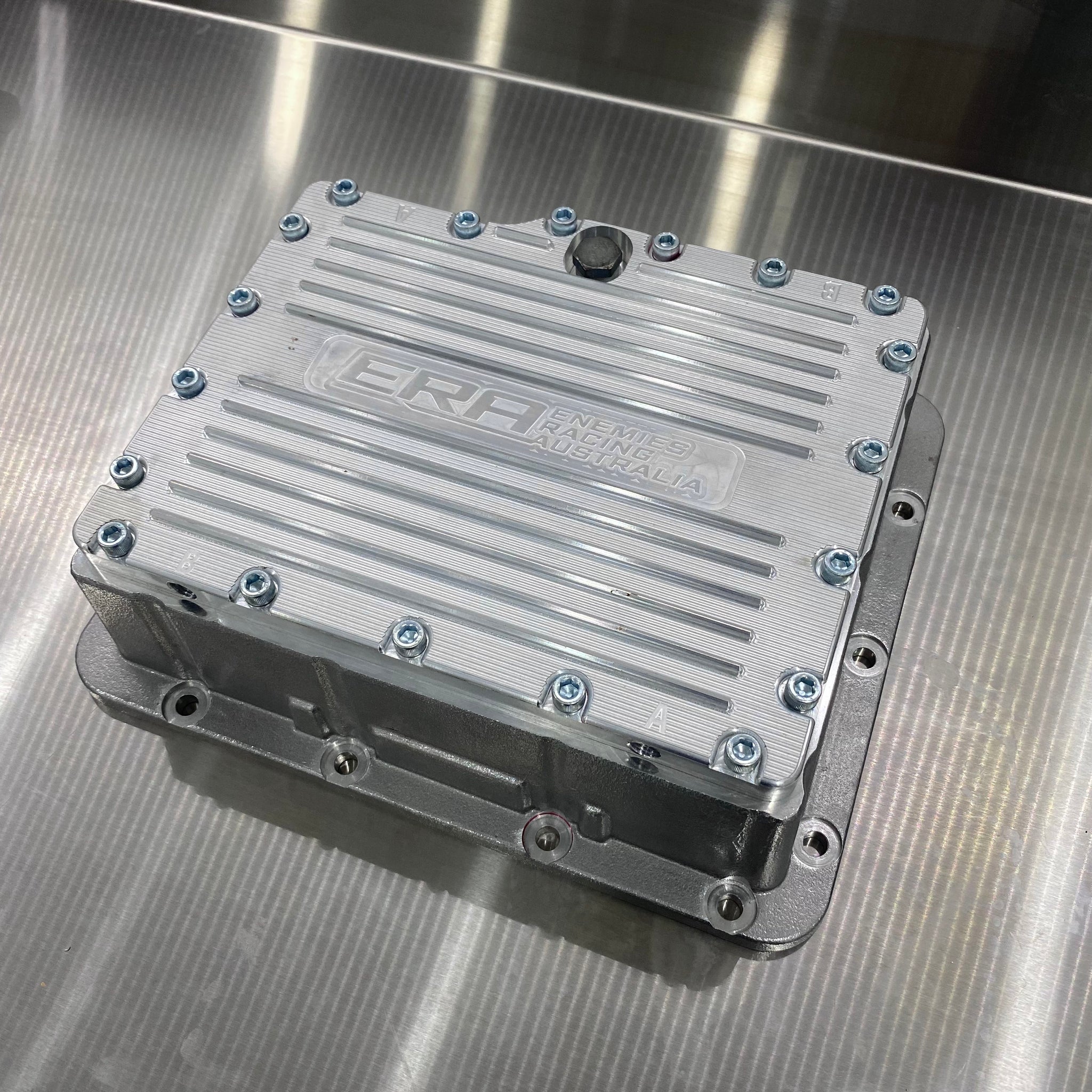

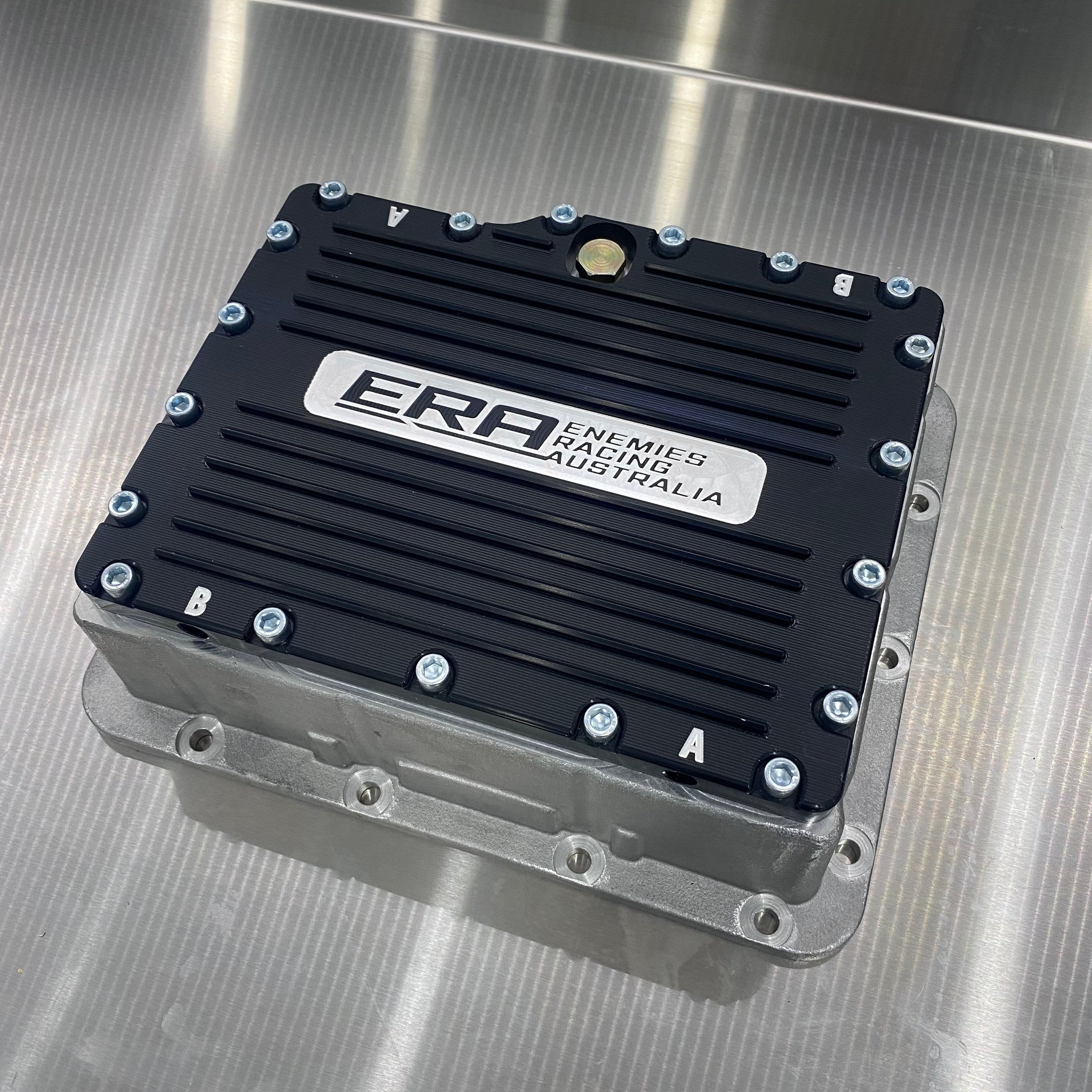

Our transmission pan is custom built to regulate fluid temperature. This system will effectively cool trans fluid as well as pre-heat fluid to a suitable temp before each run. It has been tested in our Drag Week cars for years and has proven to be extremely effective in high horsepower / high stall applications & street driving.
These can be set up multiple ways.
1. The trans cooler can be hooked up to the cold side of the water pump or heater circuit.
2. A small radiator / heat exchanger after the pump.
3. You can run chilled water through the pan with a pit cooler.
They can also be set up as a combination of all 3 with their multiple inlets and outlets.
Dimensions & Specifications
Overall: 275mm x 335mm x 100mm
Inlet / Outlet Fitting : 1/4" NPT
Includes all hardware & O-Ring.
